Description

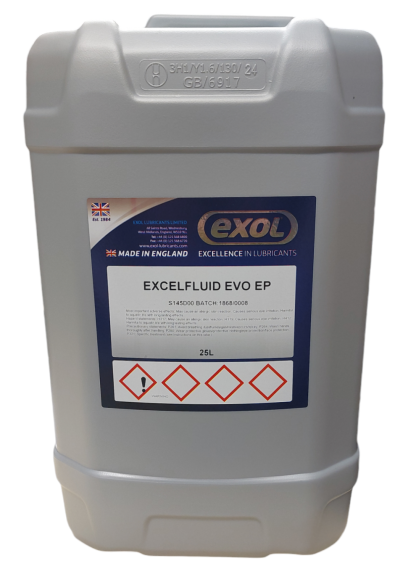

Excelfluid EVO EP
High performance, high oil water-mix metalworking fluid
Product code: S145
Product Description:
High performance, High oil semi-synthetic water extendable cutting fluid designed to give a long-life, bio-resistant
and ultra-stable emulsion. Excelfluid EVO EP contains sophisticated “extreme pressure” additives to ensure excellent
cutting performance.
Unrivalled EP cutting performance allows the grade to be used in all types of arduous manufacturing applications.
The blend of EP performance additives provides outstanding surface finish and tool life on all types of aluminium,
yellow metals and both ferrous and non-ferrous materials. The unique formulation prevents scum and soap
formation associated with more reactive materials. The product has outstanding tramp oil rejection properties which
means excellent cleanliness of the machine tool can be maintained
The unique low foam emulsifier system does not rely on traditional antifoams for foam control. The emulsion
when in use produces 50% less foam compared to similar emulsion types with a 50% repeatable rapid increase in
foam collapse. To be used in both soft and hard water conditions from 0ppm – 350ppm.
Features & Benefits:
Excellent machining characteristics Operator friendly
Free from Formaldehyde release biocides Low top up rates
Low foam / low misting characteristics Multi-metal compatible
Excellent EP performance Outstanding anti-corrosion properties
Typical Test Data
Emulsion Type Semi translucent (Milky)
Foaming Tendency @ 5% emulsion in
50ppm water
Nil foam after 5 seconds
Specific Gravity at 20oC 0.95 typical
pH @ 5% 9.2 typical
Refractometer Factor 1.1
IP 287 Corrosion Break Point, % Volume: 2.0
Reichert Lubricity Characteristics at 10% dilution;
Noise Reduction (metres) 20
Oil Content 43%
Materials & Performance
Material types Performance Rating
Titanium ****
Aluminium ****
Aero aluminium alloys ****
High alloy/stainless steel ****
Copper/brass ***
Ferrous Materials ****
Applications Dilution
Tapping 8 – 10 %
Milling 5 – 7 %
Turning 5 – 7 %
Reaming 8 – 10 %
Sawing 5 – 7 %
Drilling 8 – 10 %
Grinding 4
