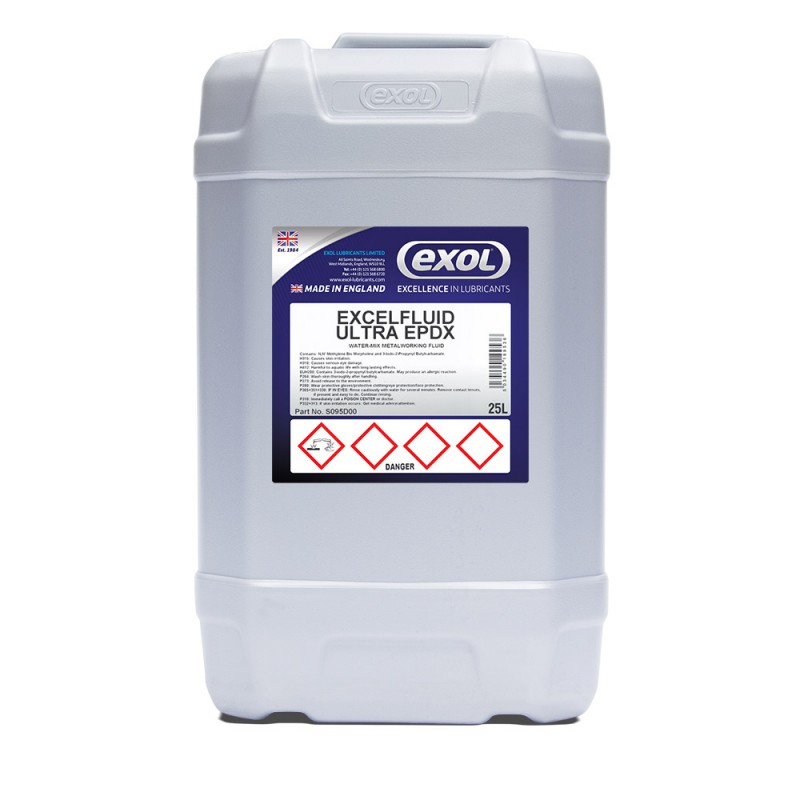

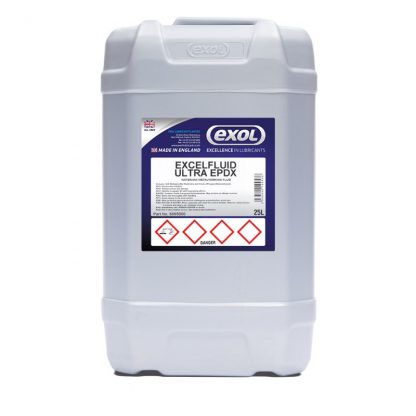

Excelfluid Ultra EPDX
An ultimate chlorine free water-mix metalworking fluid
Product code: S095
Excelfluid Ultra EPDX is the latest in chlorine free technology offering significant advantages in performance without
the use of chlorinated additives. It is inherently low foaming and hard water stable. It is suitable for use on a wide
range of difficult materials and is a perfect choice for aerospace manufacturing.
Excelfluid Ultra EPDX offers exceptional machining performance and can be used in all types of arduous
manufacturing applications including creep feed grinding. The performance additives incorporated into the fluid
provide outstanding surface finish on all types of aluminium and associated alloys as well as high tensile steels.
The unique formulation also prevents scum and soap formation associated with more reactive materials. Excelfluid
Ultra EPDX is extremely low foaming making it suitable for use in high pressure coolant systems often associated
with modern CNC machine tools.
Excelfluid Ultra EPDX is highly biostable and exhibits extended sump life whilst maintaining its high levels of anticorrosion properties.
Features & Benefits:
• Excellent machining characteristics • Used in all difficult applications
• Chlorine free • Ultra low foaming tendency
• Secondary amine free • Multi-metal compatible
• NP Ethoxylates free • Outstanding levels of boundary lubrication
Typical Test Data:
Appearance of Concentrate Amber liquid
Emulsion Appearance Milky white
Specific Gravity 0.976
pH @ 5% 9.3
IP287 Breakpoint, % 2.0
Reichert Performance @ 10% Noise Reduction 13.0m
Load Capacity 2.06 Kg/mm2
Refractometer Correction Factor 1.0
General Machining 4-5% Creep Feed Grinding 5-7%
Gear Cutting 6% Deep Hole Drilling 7%
Dilutions can be increased further to gain greater performance up to a maximum of 10%
